Description
1. DEVICE DESCRIPTION
Model name: SV-CS-LED P8U-STE
Manufacturer: Starview Asia
Origin: Asia

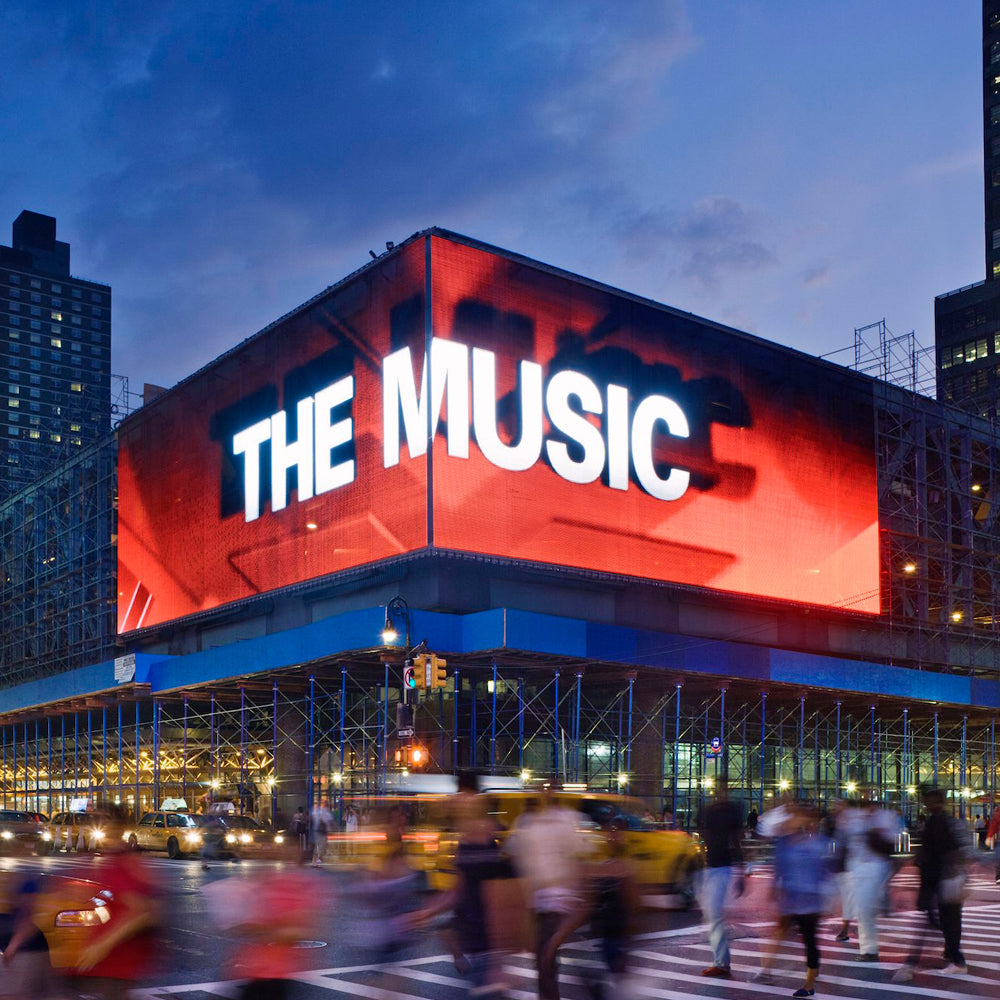

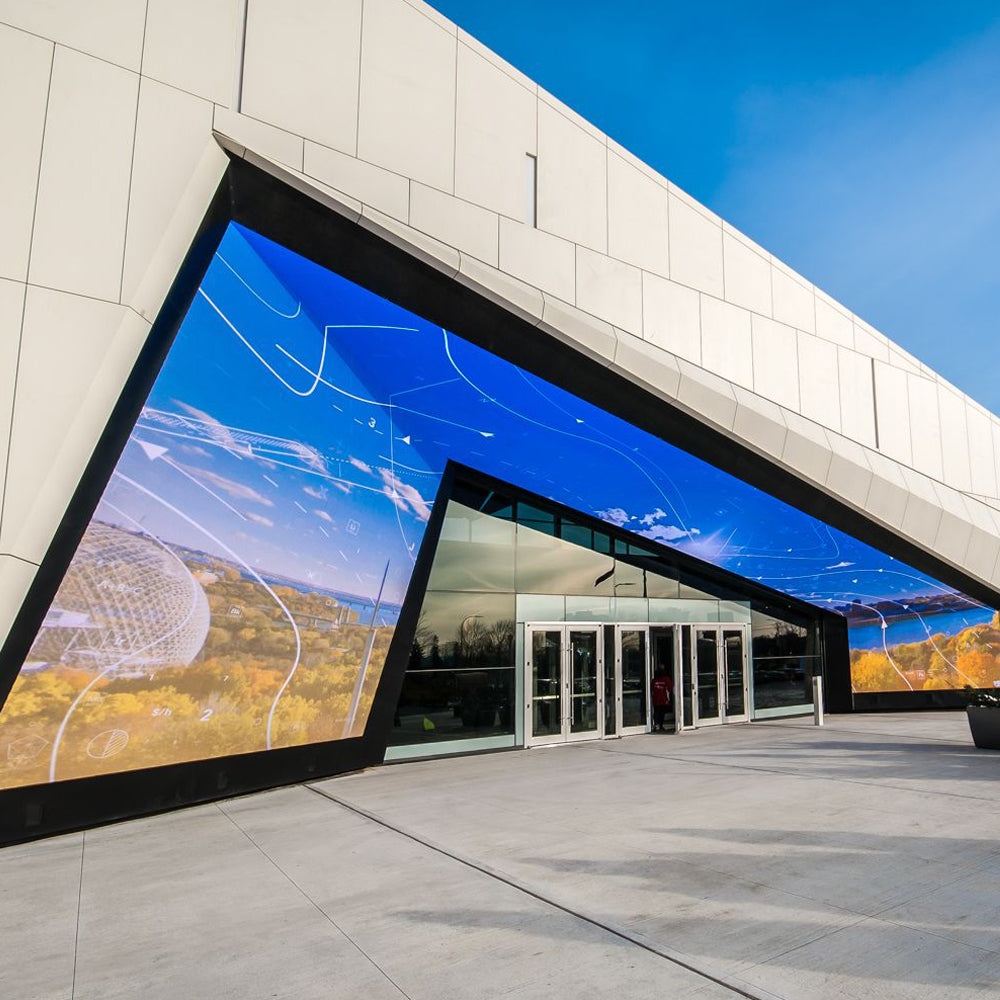

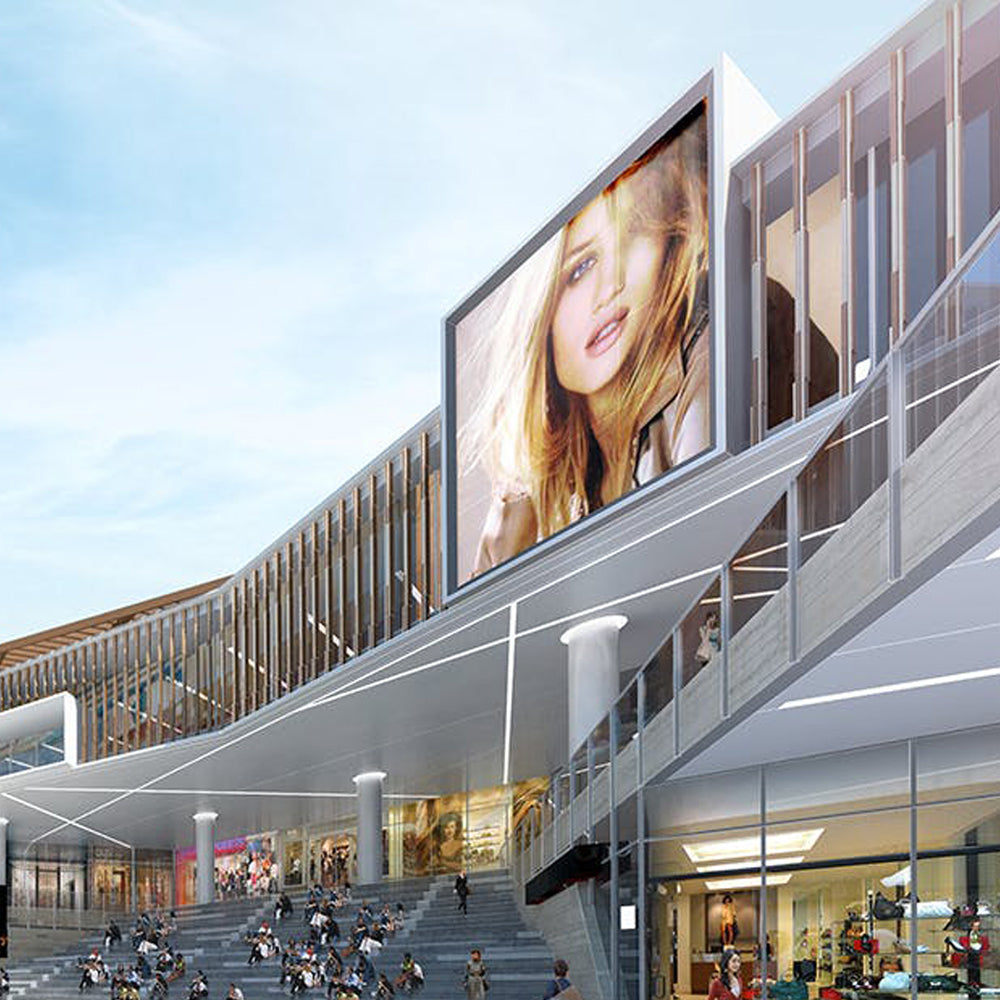

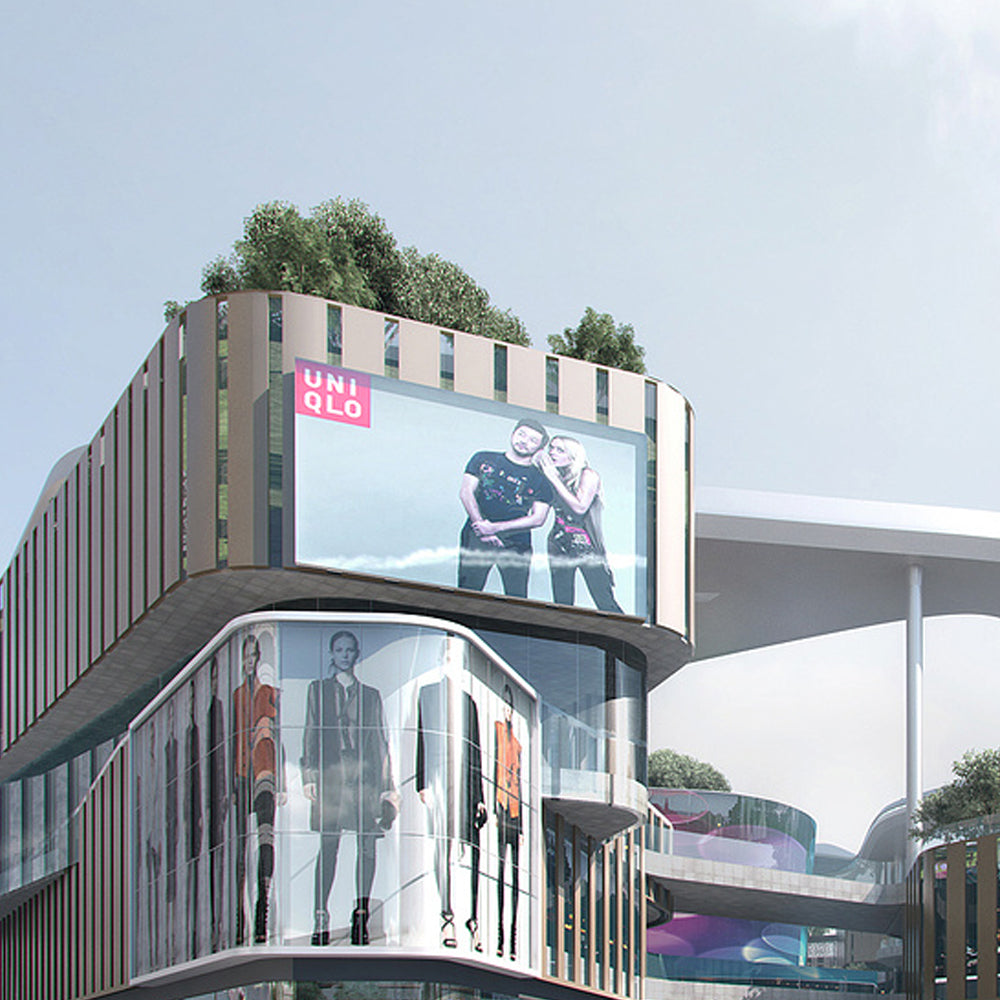

Starview C-series is a product line installed in outdoor environments, providing perse sizes to meet the needs of all projects. Our outdoor LED displays are sharp, stunning and designed to excel in high ambient light environments, capturing your audience's attention and helping you deliver an unforgettable experience.
Starview C-series is a line of flexible ultra-fine resolution LED video displays with pixel resolutions from P2.5 to P10. With a convenient size, the all-in-one design is suitable for many low-height installation environments. Starview C-series is lightweight and easy to handle, allowing it to be an attractive solution to change traditional video walls or video walls that favor compact high-rise solutions. It uses an easily configurable LED Cabinet of HD or full HD resolution and good pixel pitch ensuring high visibility from a short distance.
A variety of unit module sizes are available.
Perfect seamless combination for different cabinet sizes.
High brightness, waterproof, high refresh rate.
SMD package provides wide viewing angle.
Provides super sharp image quality.
Top quality, premium configuration, wholesale price.
2. BASIC TECHNICAL PARAMETER
- Pixel Configuration: SMD3535, RGB 3-in-1
- Pixel Density: 15,625 pixels/m²
- Module Resolution (W x H): 40 x 20 pixels
- Module Size (W x H): 320 x 160 mm
- Cabinet Resolution (W x H): 120 x 120 pixels
- Cabinet Design: Steel/ Magnesium alloy
- Brightness: 5500 nits
- Color Temperature (Adjustable): 1000 - 18,500K (Optional)
- Viewing Angle (H/V): 140° / 140°
- Display Colors: 281 trillion (16-bit)
- Contrast Ratio: ≥ 99.8%
- Driver IC: 16207
- Refresh Rate (Adjustable): 1920/ 3840 Hz
- Scan Mode: 1/4
- Service Access: Rear
- LED Lifetime: > 100,000 hours
- Certificate: CCC/ CE/ RoHS/ FCC
3. INSTALLATION – MAINTENANCE - SERVICES
Free installation in Hanoi, Ho Chi Minh City, Melbourne.
Installation services in other provinces: Within 150km from Hanoi, Ho Chi Minh City: Installation fee of 2 million VND up to a maximum of 5% of the order value. Beyond 300km from Hanoi, Ho Chi Minh City: Installation fee of 3 million VND up to a maximum of 5% of the order value.
Other cities in the region: (Asia, EU, Australia, Anywhere) contact us to receive service quotes...
Additional maintenance and technical support services are available for purchase. In case of equipment malfunction, replacements are provided free of charge, even beyond the warranty period. Contact for further assistance.
Free user guidance and installation support via phone, Video Call, Chat Room, or TeamViewer.
4. WARRANTY POLICY
The product is covered by Starview's official warranty for 24 months in Vietnam/Australia, with service centers in Hanoi. Ho Chi Minh City and Melbourne.
Within the first 28 days after purchase, defective products will be exchanged for new ones, provided they meet specific conditions ( the product must have an original box with full attached of accessories and not have any scratches, do not violate any other warranty policy, and not a consumable device)
From the 29th until the end of the warranty period, Starview commits to fix the problem and return the product within 7 days (excluding Saturdays, Sundays, holidays, Tet and other pre-agreed cases). In case the products that must be sent for warranty overseas, the warranty waiting period will be according to the company's policy.
In case the warranty is not possible or the warranty period is too long (more than 45 days), you can exchange for another device equivalent to the warranty product or a product with higher specifications at an agreed cost..
5. COMMERCIAL CONDITIONS
Price: Listed in Vietnam, excluding 10% VAT, other markets are CIP prices to customer addresses (applicable to all transactions on Starview's e-commerce platforms).Currency: Depending on the country or region, the currencies accepted on the Starview payment system.
Payment Methods: Online payment platforms, bank transfers, credit cards, online payment gateways (VNPAY, PayPal, Master Card, VISA), COD or cash at the company's office.
Deposit Requirement: For orders outside Hanoi/Melbourne and Ho Chi Minh City, a deposit of 10% - 30% of the order value is required for COD.
Specification of goods delivered: Starview products will be delivered to customers with the following documents:
- VAT invoice
- Delivery record, also the equipment warranty certificate
- QR Code instructions for installation, use and technical support
- CO certificate of origin for imported products.
- CQ certificate of quality for imported products or Test report for domestically produced products.
- Customers are provided with an electronic account to access warranty information and technical support directly from Starview's WEB Portal system.
DATASHEETS
STARVIEW C-SERIES OUTDOOR LED VIDEO WALL
