1. DEVICE DESCRIPTION

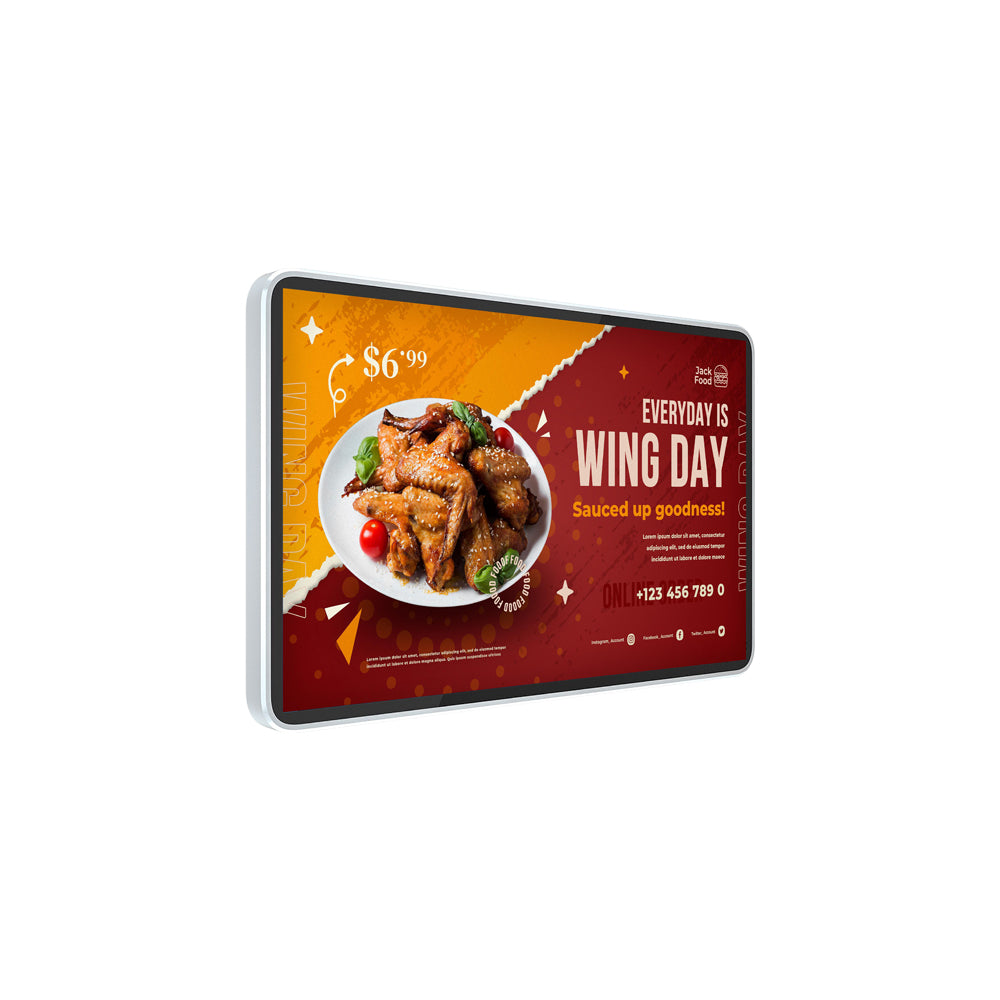

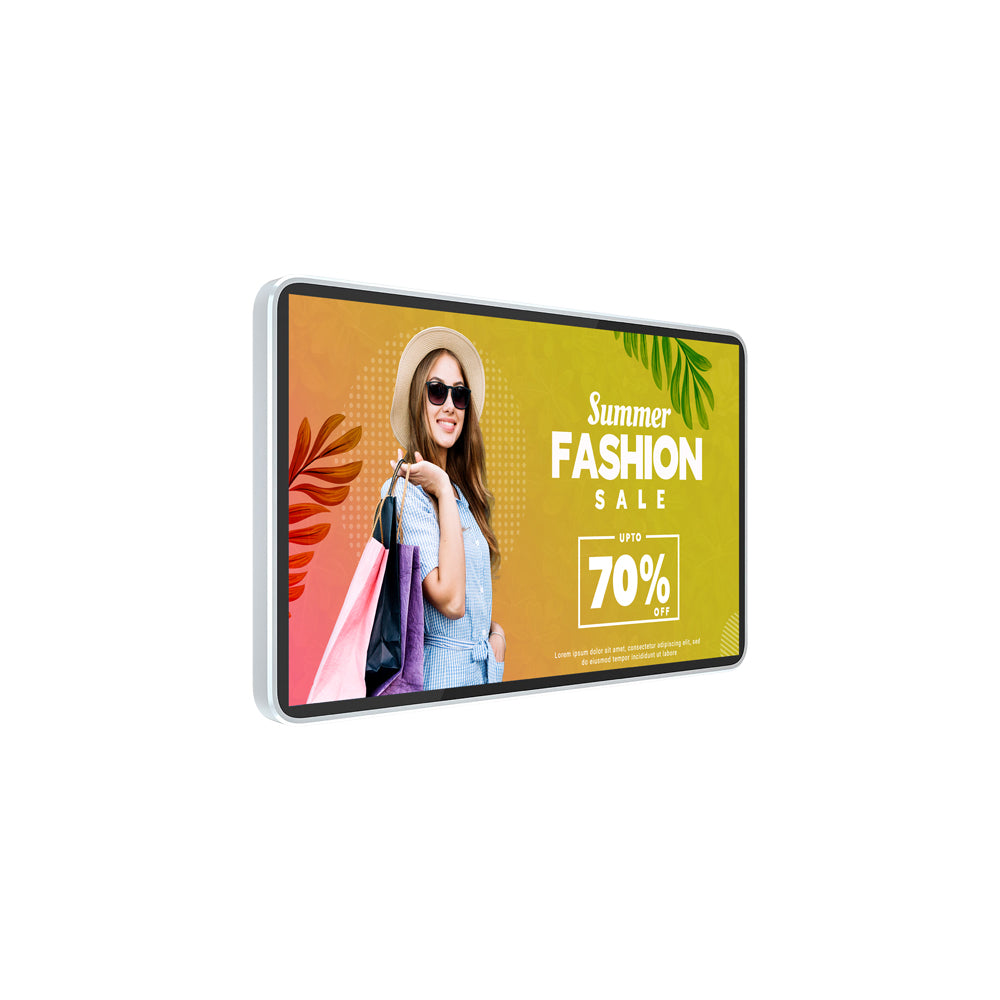

Model name: SV-CSS22W
Manufacturer: Starview Asia
Origin: Asia
Starview Wall Mounted Digital Signage SV-CSS Series offers you an array of professional grade
features in a compact form factor so that you can easily meet various customer needs. These
smaller displays are ideal for delivering customized content to individual customers for a more
up-close and personalized experience with the ability to fit into the smallest of spaces and
capture viewer attention at eye level.
Catch pedestrian attention with this large format to increase customer engagement and
enhanced experience. As an advertising and display solution, allowing you to showcase different
images, videos and slideshows. This commercial multimedia device provides an alternative to
traditional signage, making it the ideal display solution tool in public venues, tradeshows, and
business institutes.
2. BASIC TECHNICAL PARAMETER
Screen Size: 21.5”
- LCD Technology: ADS
- Resolution: 1920 x 1080 (16:9)
- Display Colors: 8 bit, 16.7M colors
- Refresh Rate: 60Hz
- Brightness: 250 cd/m²
- Contrast Ratio: 800:1
- Lifetime: 30,000 Hrs
- Viewing Angle: 178°(H) / 178°(V)
- Response Time: 8ms
- O/S: Android 8.1
- CPU: Cortex-A17@1.8GHz
- RAM/ROM: 2GB / 16GB
- Input: USB2.0 HOST x3/ USB OTG x1 (Mini
USB)/ USB for serial x2 (RS232 format)/ SD Card
Slot x1
- Output: Earphone x1/ HDMI output x1
- Networks: LAN x1 / Wifi (802.11b/g/n) / BT4.0
- Built-In Speaker: 2 x 3W (8Ω)
- Color: Black / ABS ( Front Frame + Back Cover)
- Operation Temperature: 00C ~ 400C
- Operation Humidity: 20% ~ 80% RH
- Storage Temperature: -200C ~ 600C
- Storage Humidity: 10% ~ 80% RH
3. INSTALLATION – MAINTENANCE - SERVICES
Free installation in Hanoi, Ho Chi Minh City, Melbourne.
Installation services in other provinces: Within 150km from Hanoi, Ho Chi Minh City: Installation fee of 2 million VND up to a maximum of 5% of the order value. Beyond 300km from Hanoi, Ho Chi Minh City: Installation fee of 3 million VND up to a maximum of 5% of the order value.
Other cities in the region: (Asia, EU, Australia, Anywhere) contact us to receive service quotes...
Additional maintenance and technical support services are available for purchase. In case of equipment malfunction, replacements are provided free of charge, even beyond the warranty period. Contact for further assistance.
Free user guidance and installation support via phone, Video Call, Chat Room, or TeamViewer.
4. WARRANTY POLICY
The product is covered by Starview's official warranty for 24 months in Vietnam/Australia, with service centers in Hanoi. Ho Chi Minh City and Melbourne.
Within the first 28 days after purchase, defective products will be exchanged for new ones, provided they meet specific conditions ( the product must have an original box with full attached of accessories and not have any scratches, do not violate any other warranty policy, and not a consumable device)
From the 29th until the end of the warranty period, Starview commits to fix the problem and return the product within 7 days (excluding Saturdays, Sundays, holidays, Tet and other pre-agreed cases). In case the products that must be sent for warranty overseas, the warranty waiting period will be according to the company's policy.
In case the warranty is not possible or the warranty period is too long (more than 45 days), you can exchange for another device equivalent to the warranty product or a product with higher specifications at an agreed cost..
5. COMMERCIAL CONDITIONS
Price: Listed in Vietnam, excluding 10% VAT, other markets are CIP prices to customer addresses (applicable to all transactions on Starview's e-commerce platforms).Currency: Depending on the country or region, the currencies accepted on the Starview payment system.
Payment Methods: Online payment platforms, bank transfers, credit cards, online payment gateways (VNPAY, PayPal, Master Card, VISA), COD or cash at the company's office.
Deposit Requirement: For orders outside Hanoi/Melbourne and Ho Chi Minh City, a deposit of 10% - 30% of the order value is required for COD.
Specification of goods delivered: Starview products will be delivered to customers with the following documents:
- VAT invoice
- Delivery record, also the equipment warranty certificate
- QR Code instructions for installation, use and technical support
- CO certificate of origin for imported products.
- CQ certificate of quality for imported products or Test report for domestically produced products.
- Customers are provided with an electronic account to access warranty information and technical support directly from Starview's WEB Portal system.
