1. DEVICE DESCRIPTION
Model name: SS3-DA7.1A1
Manufacturer: Starview Asia
Origin: Asia
Embark on an exciting journey into the realm of immersive cinema experiences with the Starview Audio Cinema. Discover Starview Audio's cutting-edge home cinema speakers, subs, and hubs to transform your room into a state-of-the-art entertainment hub. Our audio solutions deliver premium sound quality, easy installation, and seamless connectivity. Whether you're looking for powerful speakers, booming subwoofers, or versatile hubs, our products are designed to provide an immersive home theater experience. Upgrade your room today with Starview Audio's innovative technology. Explore our range and experience the future of home cinema audio
2. BASIC TECHNICAL PARAMETER

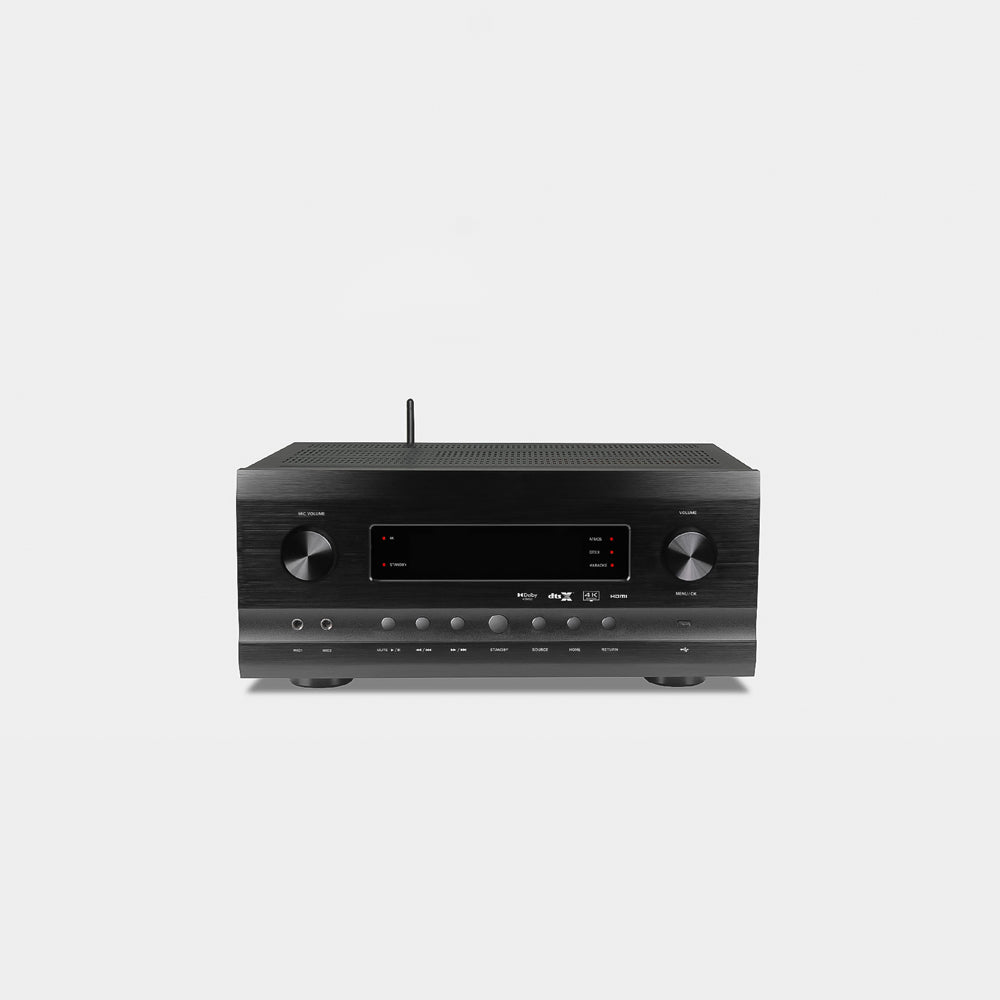

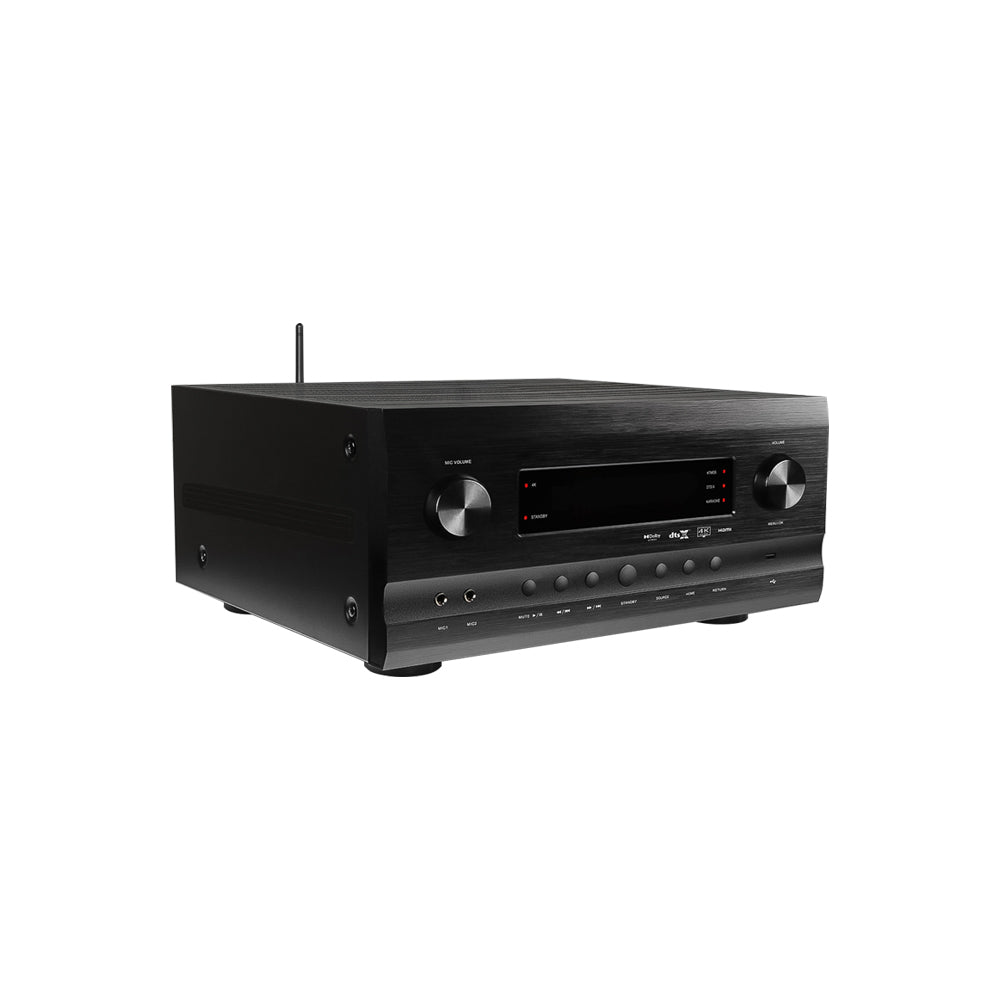

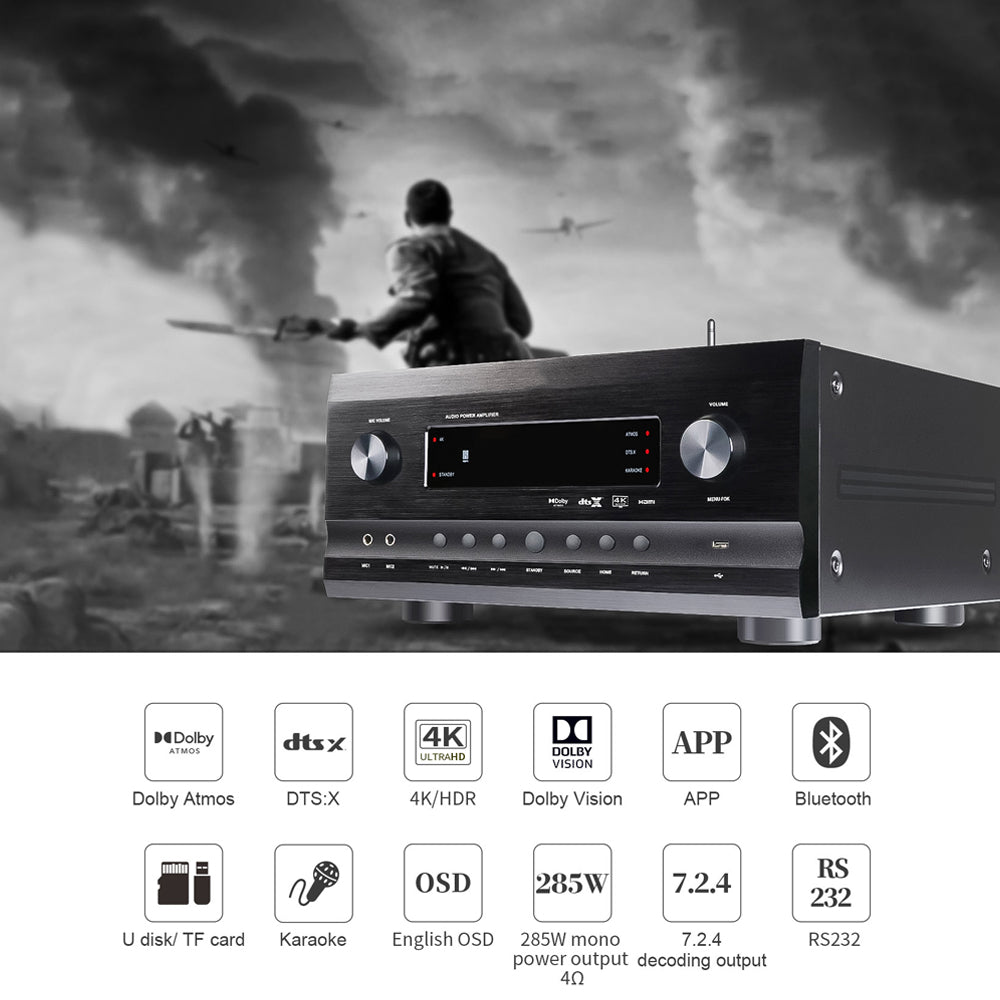

Audio Video Amplifier:
- Audio Formats: Dolby Atmos, Dolby TrueHD, DTS:X, DTS Virtual: X, etc.
- Video Formats: 4K, 2K and all downward video formats

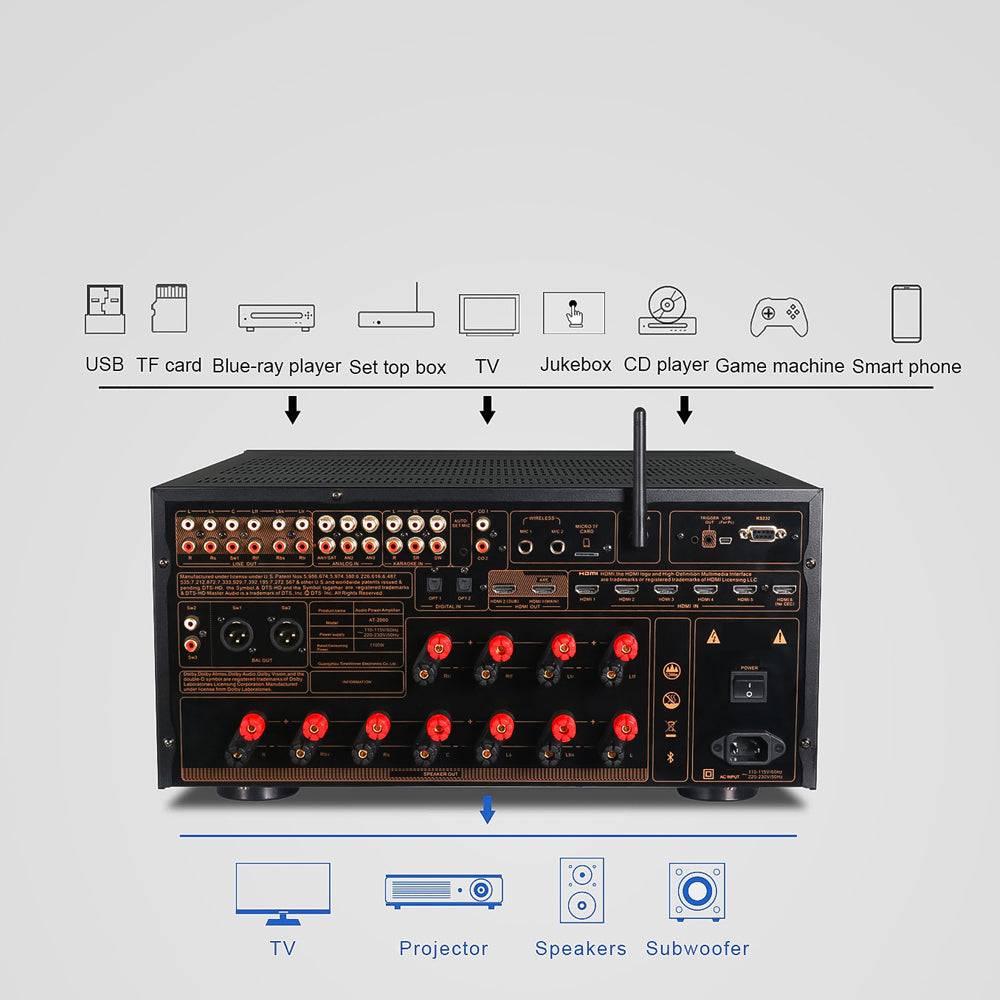

- Inputs: Bluetooth, analog, optical, coaxial, U disk, TF card, PC, 6 HDMI 2.1
- HDMI Support: 4K; 3D; ARC; CEC; Standby pass through

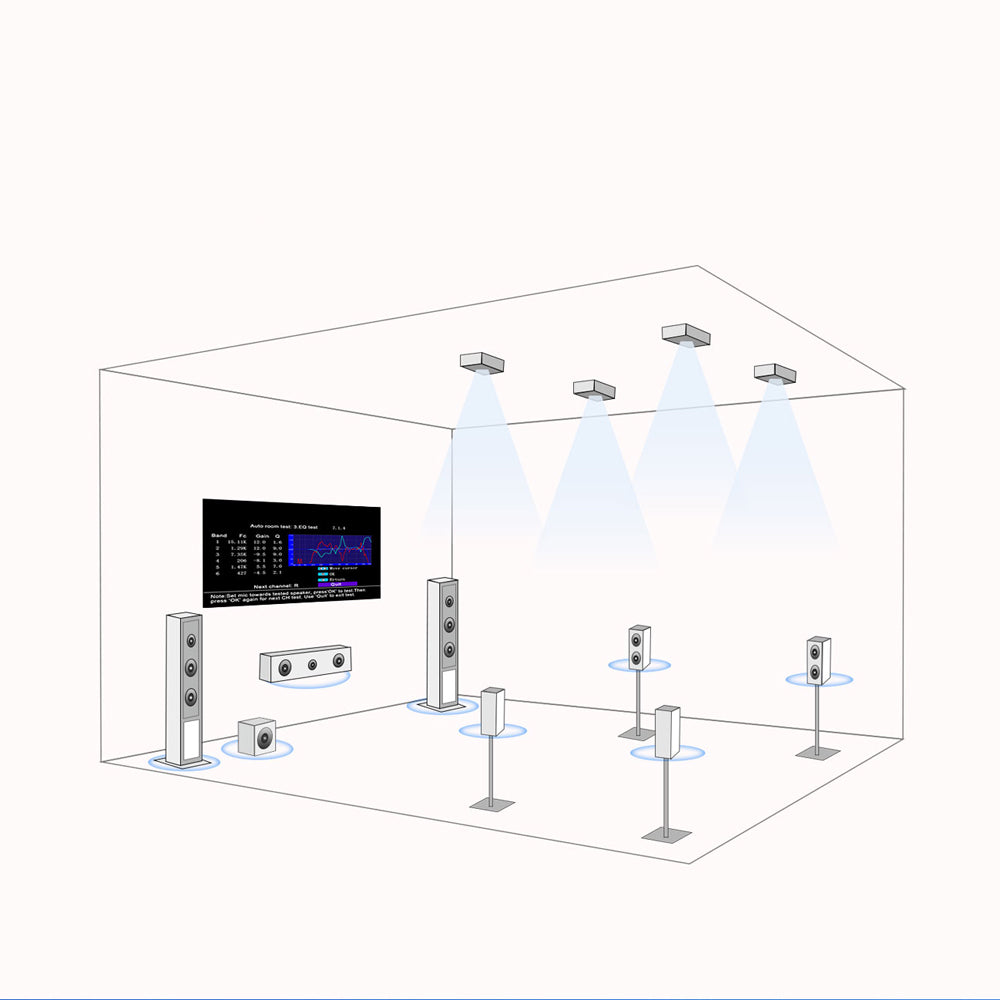

- Channel: 7.2.4
- Rated Impedance: 8Ω
- Gain: ≥ 40dB (pure mode)
- THD: ≤ 0.05% S/N
- Ratio: ≥ ≥ 98dB (A-weighted, analog direct)
- Frequency Response: 10Hz - 20kHz (+1/-3 dB, analog direct
- Rated Power Output: 285W Rms/4Ω (THD=3%, one channel, 1kHz), 160W Rms/8Ω (THD=1%, one channel, 1kHz)
- Power Supply AC: 110 - 230V 50/60Hz
- Weight: 22 kg
- Dimension (W x H x D): 431 x 440 x 219 mm
- Compatible Devices: PC, Mobile phone, TV, Projector, Hard disc player, Set-top box, Blu-ray DVD player, etc.
System Speaker

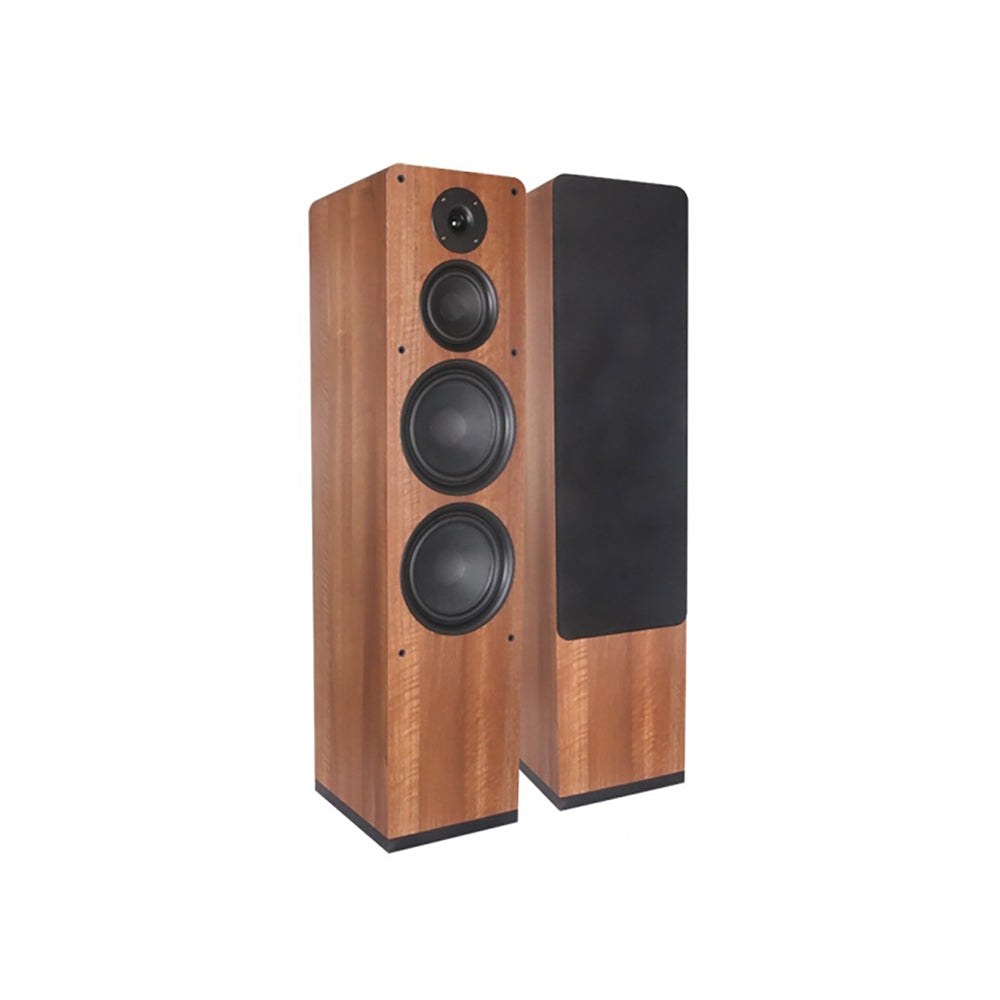

FLOOR-STAND LEFT AND RIGHT SPEAKER
- Driver: 8″ x2 + 5″ x1 + 1″ x1
- Sensitivity 85dB (1W. 1M)
- Output Power 50 - 220W
- Frequency Response 38Hz - 20kHz
- Rated Impedance 4Ω
- Net Weight 24 kg/pcs
- Dimension (W x H x D) 260 x 1115 x 310 mm

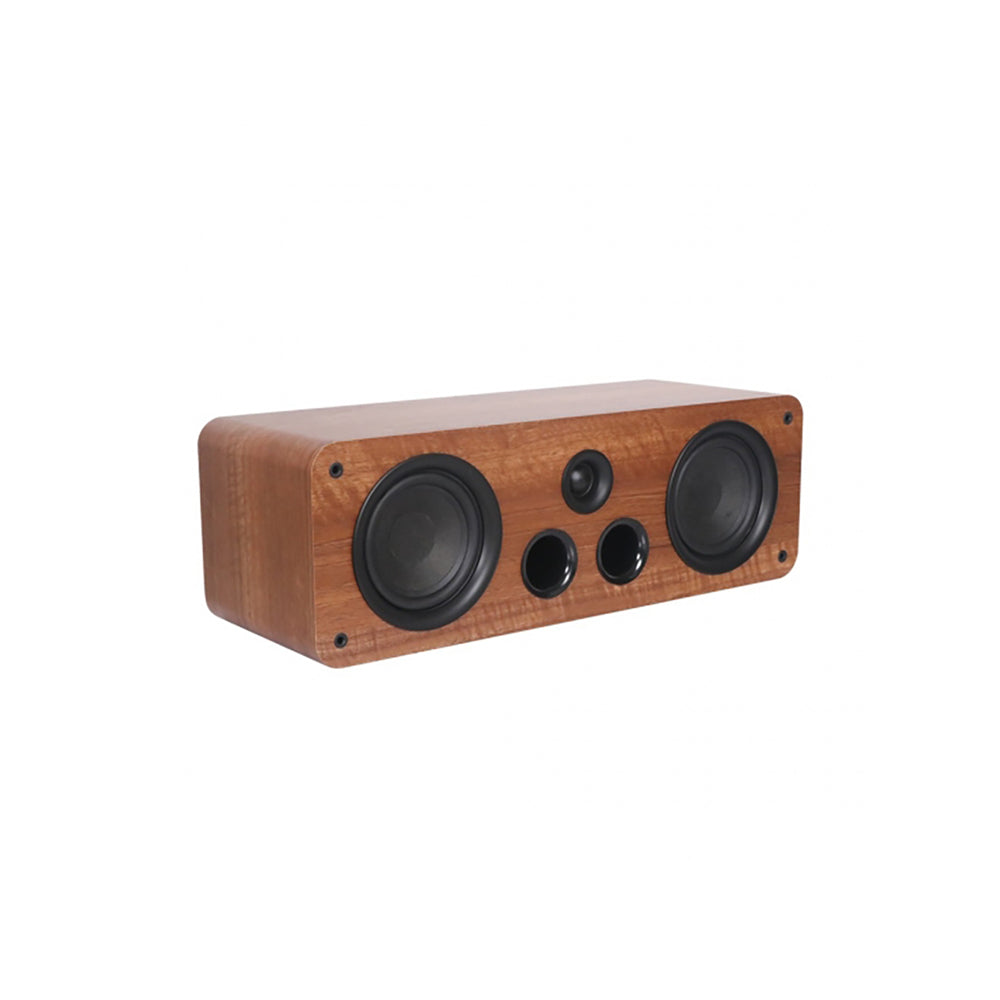

CENTER SPEAKER
- Driver: 5″ x2 + 1″ x1
- Sensitivity 85dB (1W. 1M)
- Output Power 20 - 100W
- Frequency Response 75Hz - 20kHz
- Rated Impedance 4Ω
- Net Weight 6 kg/pcs
- Dimension (W x H x D) 550 x 182 x 210 mm

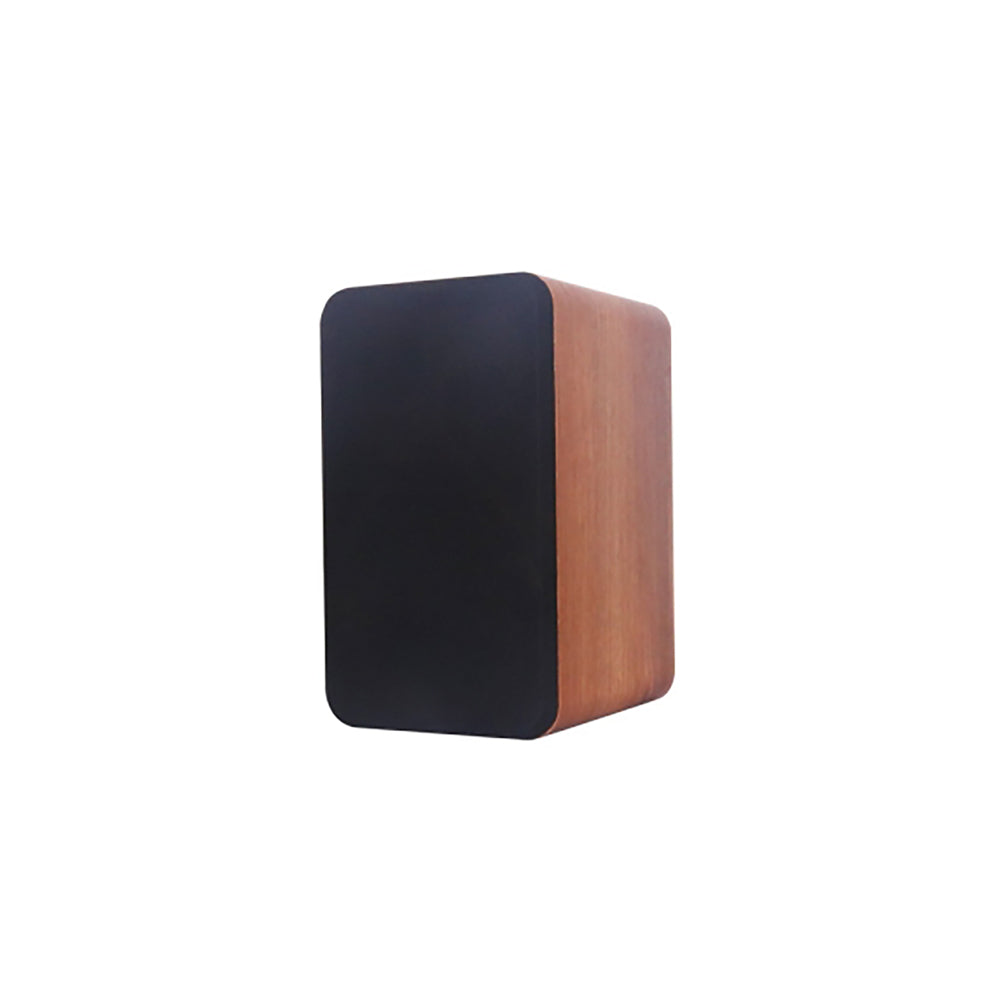

SURROUND SPEAKER
- Driver 5″ x1 + 1″ x1
- Sensitivity 85dB (1W. 1M)
- Output Power 10 - 50W
- Frequency Response 75Hz - 20kHz
- Rated Impedance 4Ω
- Net Weight 5 kg/pcs
- Dimension (W x H x D) 182 x 306 x 210 mm

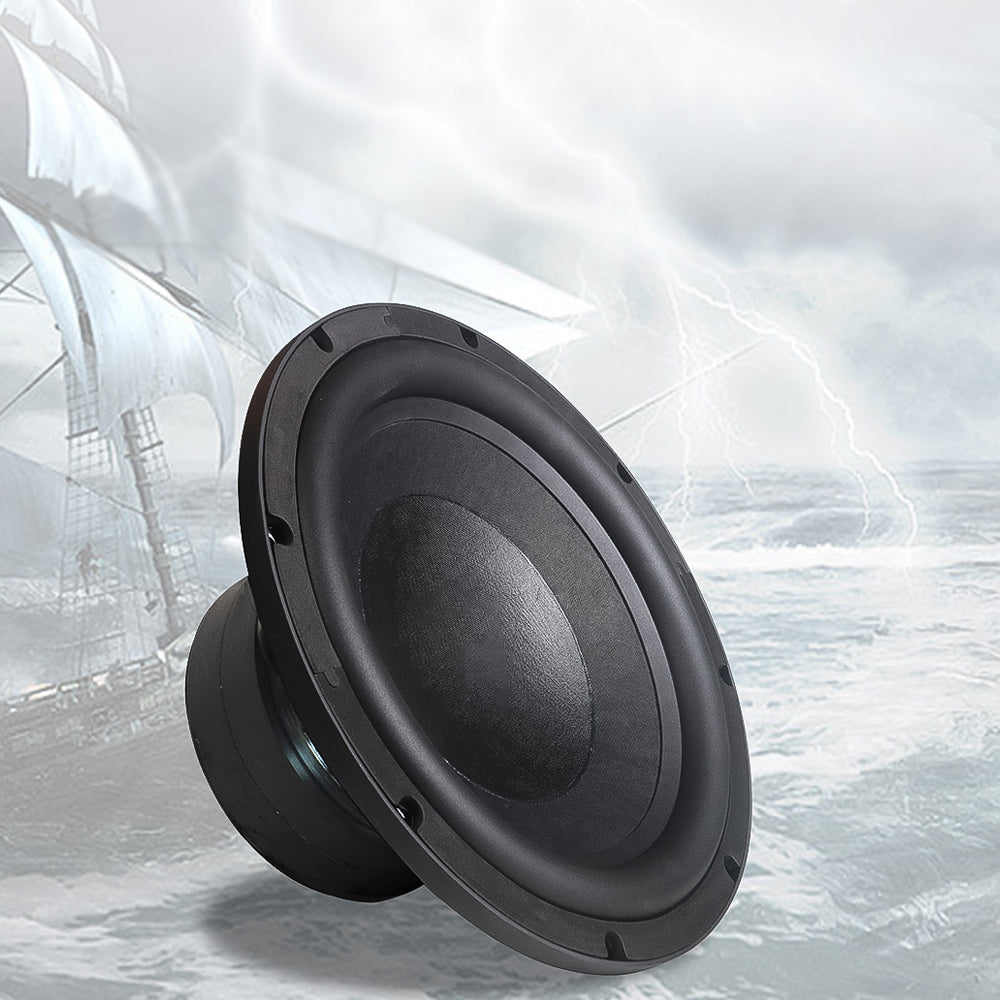

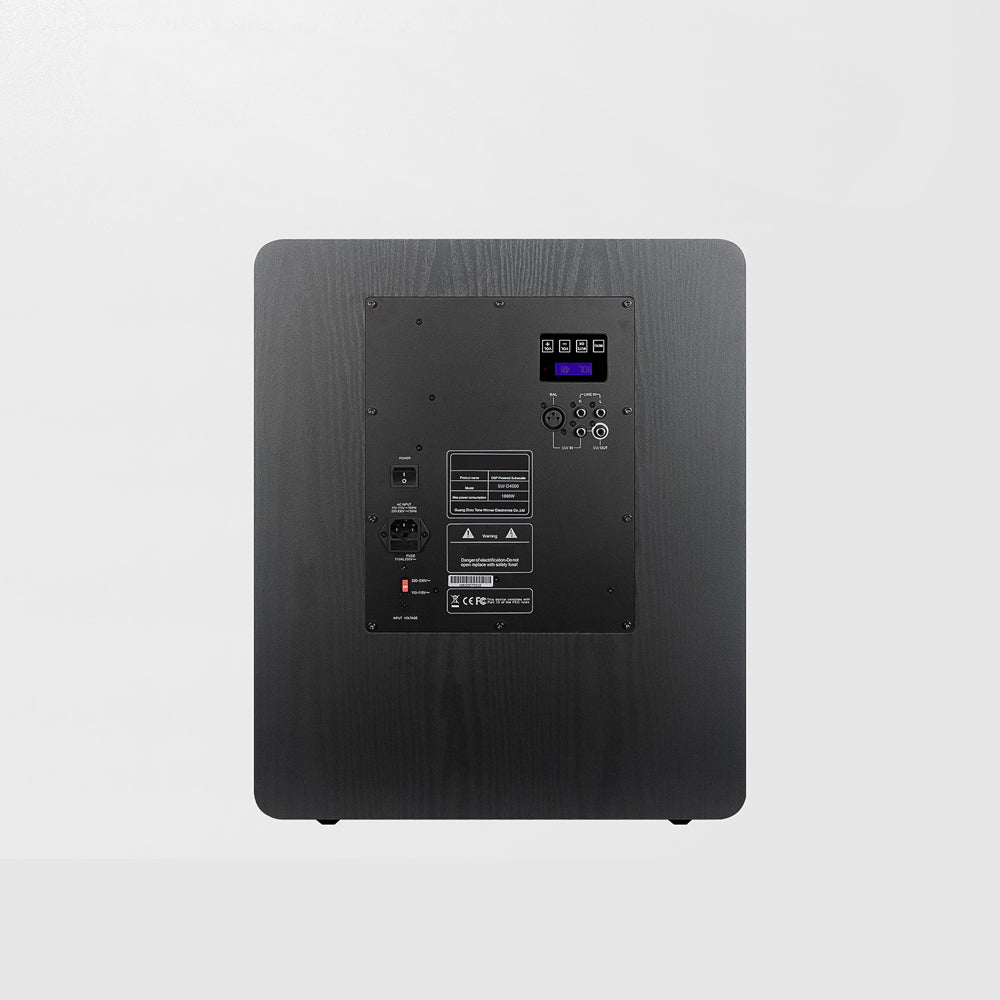

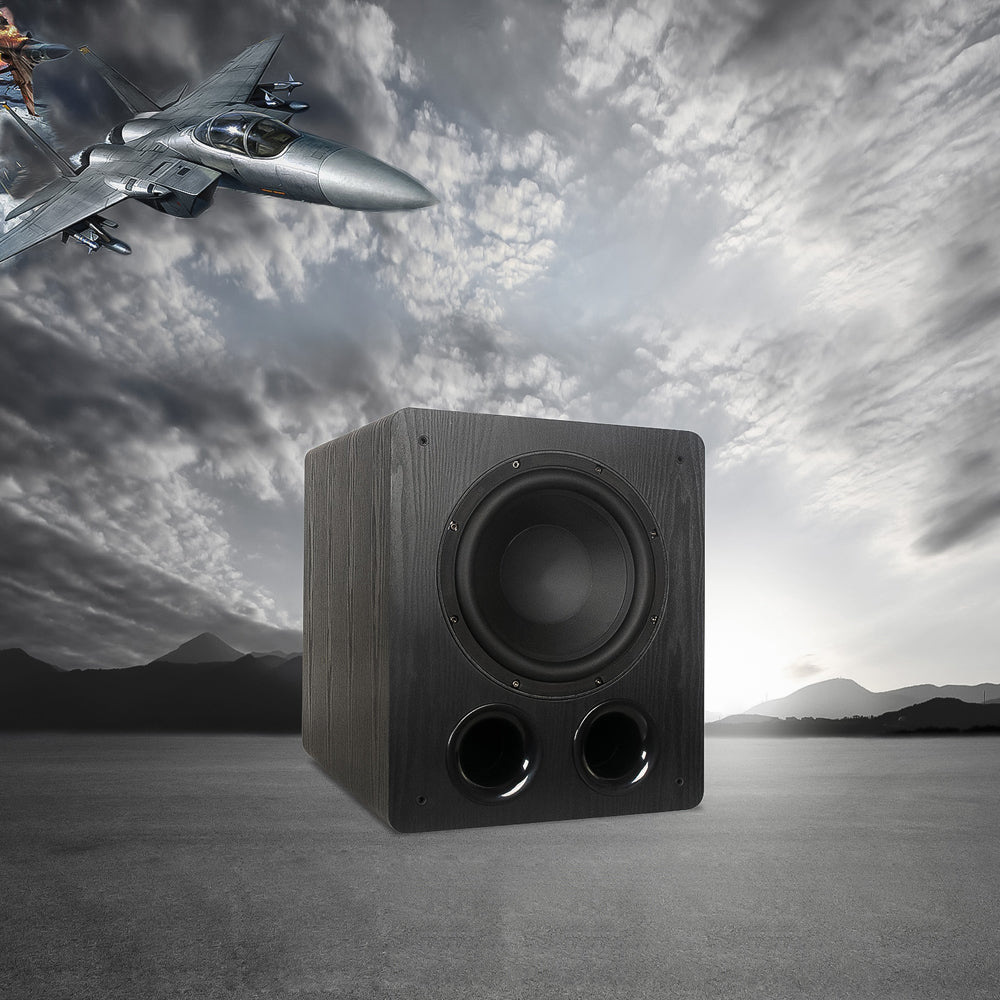

Subwoofer
- Product Type: Active subwoofer Driver 12” x1
- THD < 2%
- Output Power 800W
- Peak Power 4,000W
- Frequency Response 16Hz - 240Hz
- Phase Adjustment 0° or 180°
- Rated Impedance 3Ω
- SPL-max (dB(C), Peak, Music, 1m) 113
- Case Material: MDF
- Net Weight 34 kg/pcs

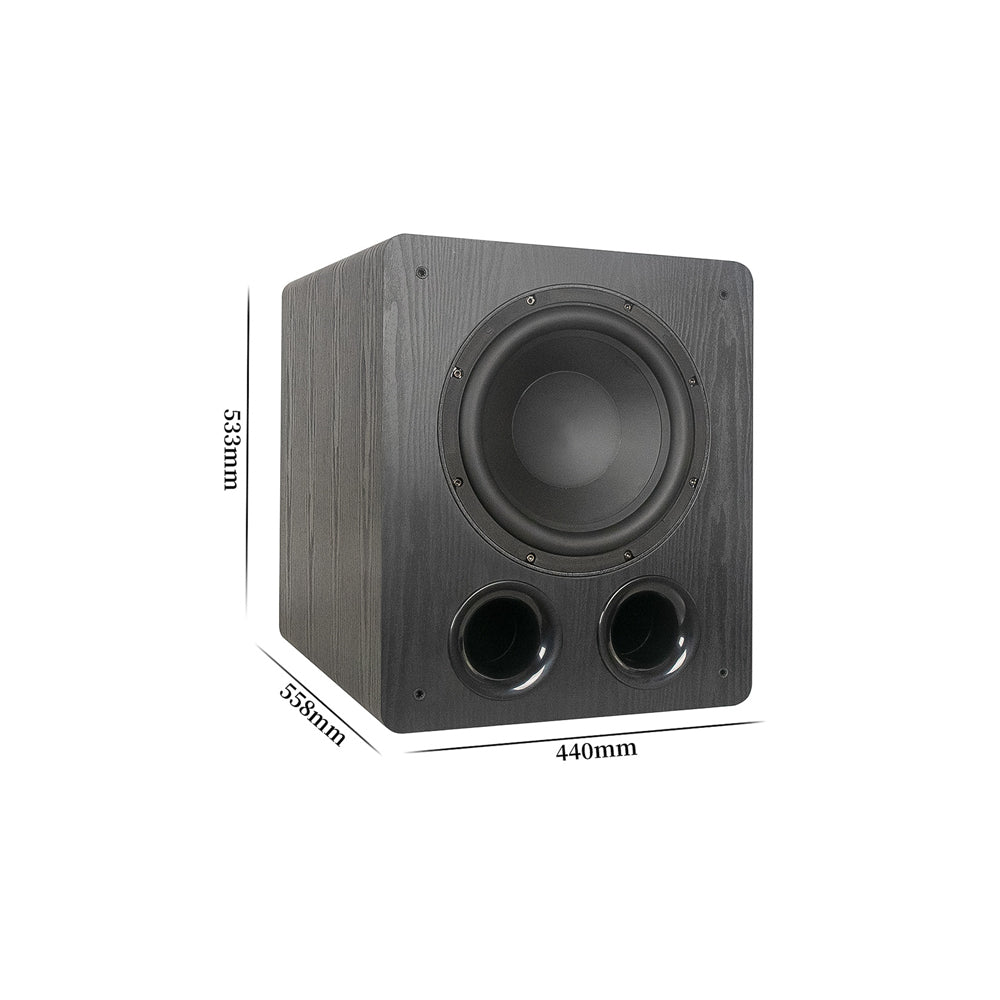

- Dimension (W x H x D) 440 x 533 x 558 mm
- Power Supply AC 110 - 230V 50/60Hz (Switch available on rear panel)
3. INSTALLATION – MAINTENANCE - SERVICES
Free installation in Hanoi, Ho Chi Minh City, Melbourne.
Installation services in other provinces: Within 150km from Hanoi, Ho Chi Minh City: Installation fee of 2 million VND up to a maximum of 5% of the order value. Beyond 300km from Hanoi, Ho Chi Minh City: Installation fee of 3 million VND up to a maximum of 5% of the order value.
Other cities in the region: (Asia, EU, Australia, Anywhere) contact us to receive service quotes...
Additional maintenance and technical support services are available for purchase. In case of equipment malfunction, replacements are provided free of charge, even beyond the warranty period. Contact for further assistance.
Free user guidance and installation support via phone, Video Call, Chat Room, or TeamViewer.
4. WARRANTY POLICY
The product is covered by Starview's official warranty for 24 months in Vietnam/Australia, with service centers in Hanoi. Ho Chi Minh City and Melbourne.
Within the first 28 days after purchase, defective products will be exchanged for new ones, provided they meet specific conditions ( the product must have an original box with full attached of accessories and not have any scratches, do not violate any other warranty policy, and not a consumable device)
From the 29th until the end of the warranty period, Starview commits to fix the problem and return the product within 7 days (excluding Saturdays, Sundays, holidays, Tet and other pre-agreed cases). In case the products that must be sent for warranty overseas, the warranty waiting period will be according to the company's policy.
In case the warranty is not possible or the warranty period is too long (more than 45 days), you can exchange for another device equivalent to the warranty product or a product with higher specifications at an agreed cost..
5. COMMERCIAL CONDITIONS
Price: Listed in Vietnam, excluding 10% VAT, other markets are CIP prices to customer addresses (applicable to all transactions on Starview's e-commerce platforms).Currency: Depending on the country or region, the currencies accepted on the Starview payment system.
Payment Methods: Online payment platforms, bank transfers, credit cards, online payment gateways (VNPAY, PayPal, Master Card, VISA), COD or cash at the company's office.
Deposit Requirement: For orders outside Hanoi/Melbourne and Ho Chi Minh City, a deposit of 10% - 30% of the order value is required for COD.
Specification of goods delivered: Starview products will be delivered to customers with the following documents:
- VAT invoice
- Delivery record, also the equipment warranty certificate
- QR Code instructions for installation, use and technical support
- CO certificate of origin for imported products.
- CQ certificate of quality for imported products or Test report for domestically produced products.
- Customers are provided with an electronic account to access warranty information and technical support directly from Starview's WEB Portal system.
