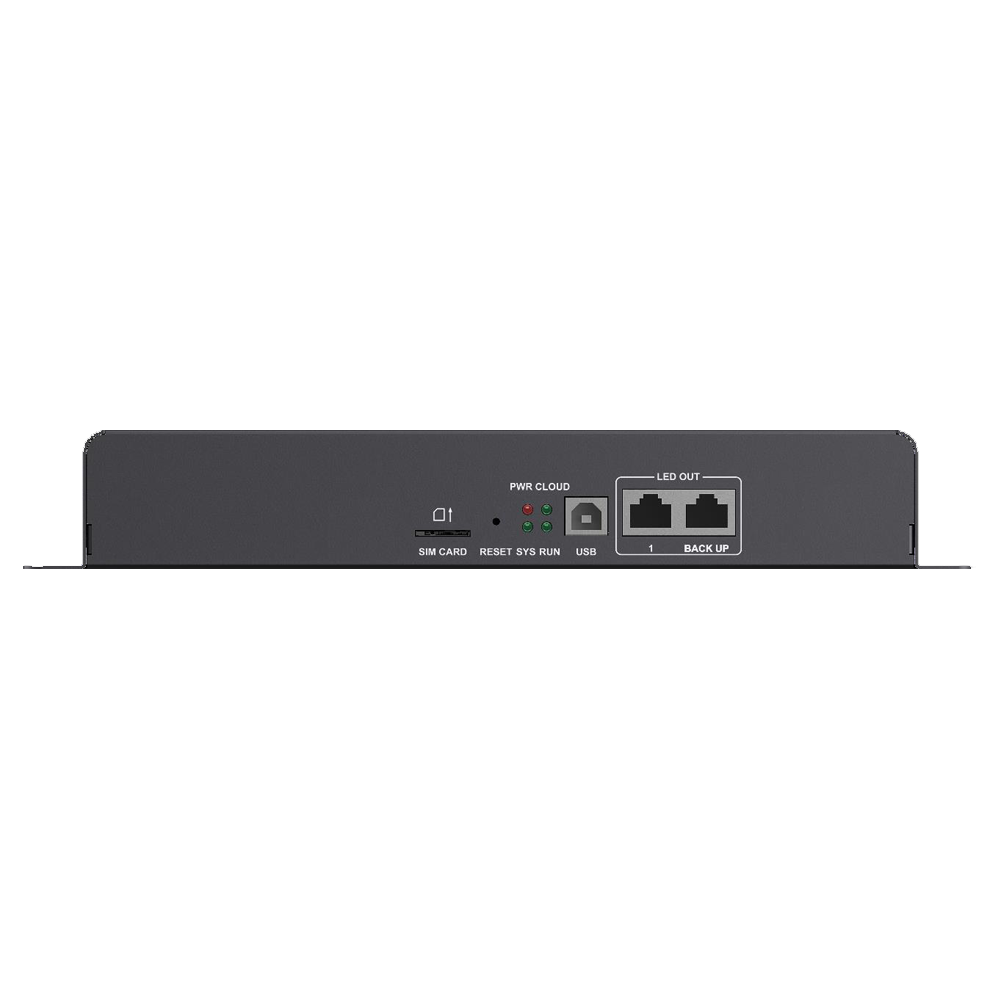

Starview S-LEDPRO-MPLAY065 Multimedia Player

1. DEVICE DESCRIPTION

The S-LEDPRO-MPLAY065 is a new generation of multimedia player created by Starview for full-color LED displays. This multimedia player integrates playback and sending capabilities, allowing users to publish content and control LED displays with a computer, mobile phone, or tablet. Working with Starview's cloud-based publishing and monitoring platforms, the S-LEDPRO-MPLAY065 enables users to manage LED displays from an Internet-connected device anywhere, anytime.

Thanks to its reliability, ease of use, and intelligent control, the S-LEDPRO-MPLAY065 becomes a winning choice for commercial LED displays and smart city applications such as fixed displays, lamp-post displays, chain store displays, advertisement players, retail store displays, door head displays, shelf displays, and much more.

2. PRODUCT FEATURES

Output

• Loading capacity up to 650,000 pixels
  • Maximum width: 4096 pixels, maximum height: 4096 pixels
• 2x Gigabit Ethernet ports
  • One serves as primary and the other as backup.

• 1x Stereo audio connector
  • The audio sample rate is fixed at 48 kHz. If a multifunction card is used for audio output, audio with a sample rate of 48 kHz is required.

Input

• 2x Sensor connectors
  • Connect to the brightness sensor or temperature and humidity sensor.

Control

• 1x USB 3.0 (Type A) port allowing for USB playback, firmware upgrade and storage expansion
• 1x USB (Type B) port connecting to the control computer for content publishing and screen control
• 1x Gigabit Ethernet port connecting to the control computer, a LAN or public network for content publishing and screen control

Performance

• Powerful processing capacity
  • Quad-core ARM A55 processor @1.8 GHz
  • Support for 4K video decoding
  • 1 GB of onboard RAM
  • 32 GB of internal storage
• Flawless playback
  • Support for playback of 1x 4K, 2x 1080p, 5x 720p, 6x 480p, or 6x 360p videos
  • Note: Videos with resolutions between 2K and 4K will be converted into 4K videos.

Functionality

• All-round control plans
  • Enables users to publish content and control screens from a computer, mobile phone, or tablet.
  • Allows users to publish content and control screens from anywhere, anytime.
  • Allows users to monitor screens from anywhere, anytime.
• Wi-Fi AP and Wi-Fi Sta can be turned on at the same time
  • Wi-Fi AP: User terminal devices can be connected to the built-in Wi-Fi hotspot of the multimedia player. The default SSID is“ Model+Last 8 digits of SN” and the default password is printed on the SSID label.
  • Wi-Fi AP+Wi-Fi Sta: Users can connect the multimedia player to a Wi-Fi network and turn on the Wi-Fi hotspot at the same time.
• Synchronous playback across multiple screens
  • Enabling synchronous playback halves the number of videos that can be played simultaneously within the decoding capability of the device.
  • NTP time synchronization
  • GPS time synchronization (The specified 4G module must be installed.)
  • RF time synchronization (The specified RF module must be installed.)

• Support for 4G modules
  • The device ships without a 4G module. Users have to purchase 4G modules separately if needed.
  • Network connection priority: Wired network > Wi-Fi network > 4G network. When multiple networks are available, the device will choose a network according to the priority order.
