Description
1. DEVICE DESCRIPTION
Model name: SSIGN-X65AA
Manufacturer: Starview Asia
Origin: Asia

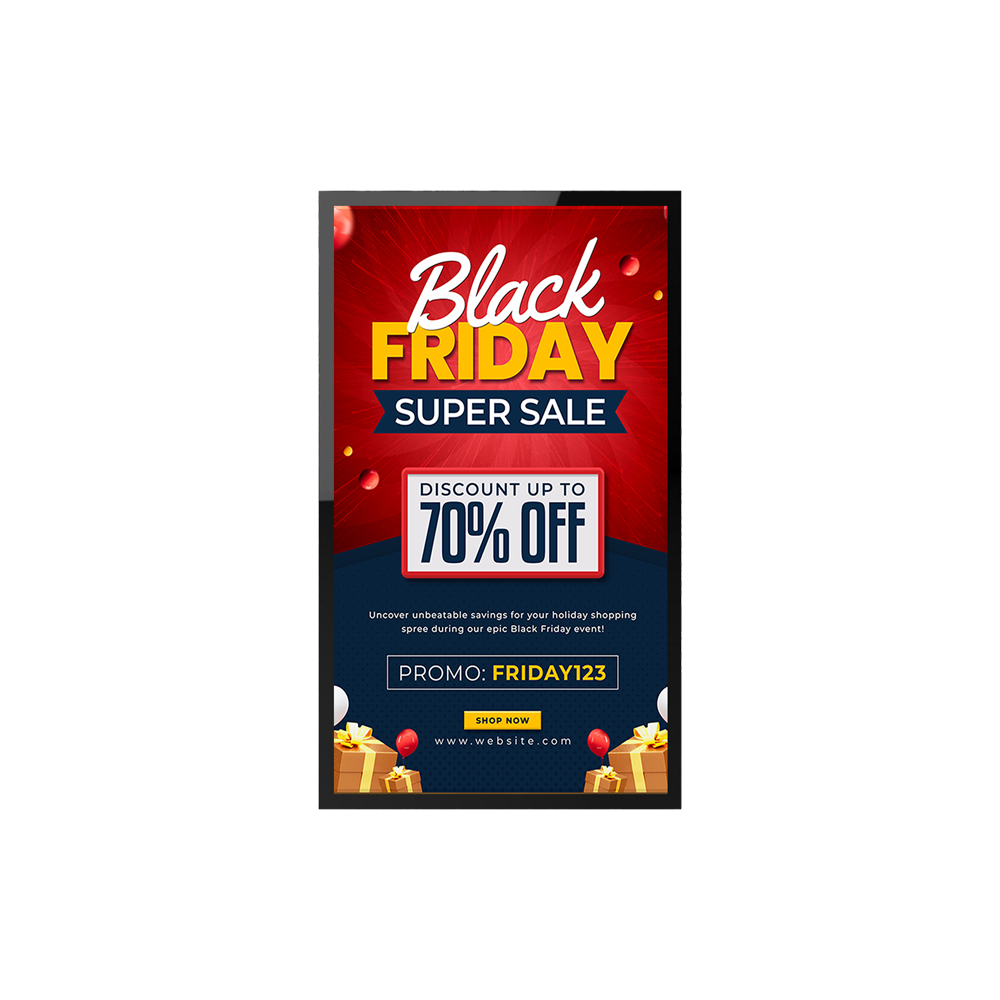

Starview SSIGN Series Digital Signage is a high-performance solution to launch your signage needs into new heights! As an advertising and display solution, allowing you to showcase different images, videos and slideshows. This commercial multimedia device provides an alternative to traditional signage, making it the ideal display solution tool in public venues, tradeshows, and business institutes, etc. The Starview SSIGN Series delivers advertising and information in any type of facility, featuring a sophisticated design and 24/7 flexible operation.

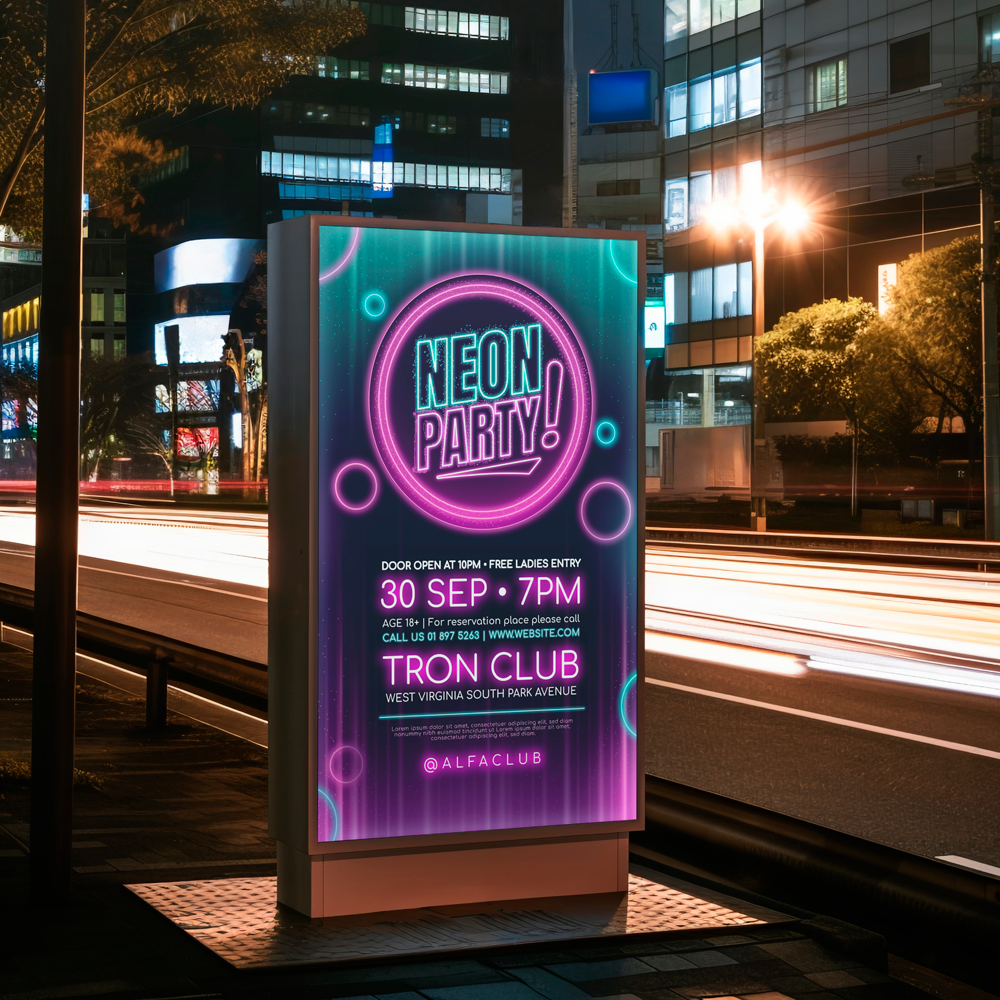

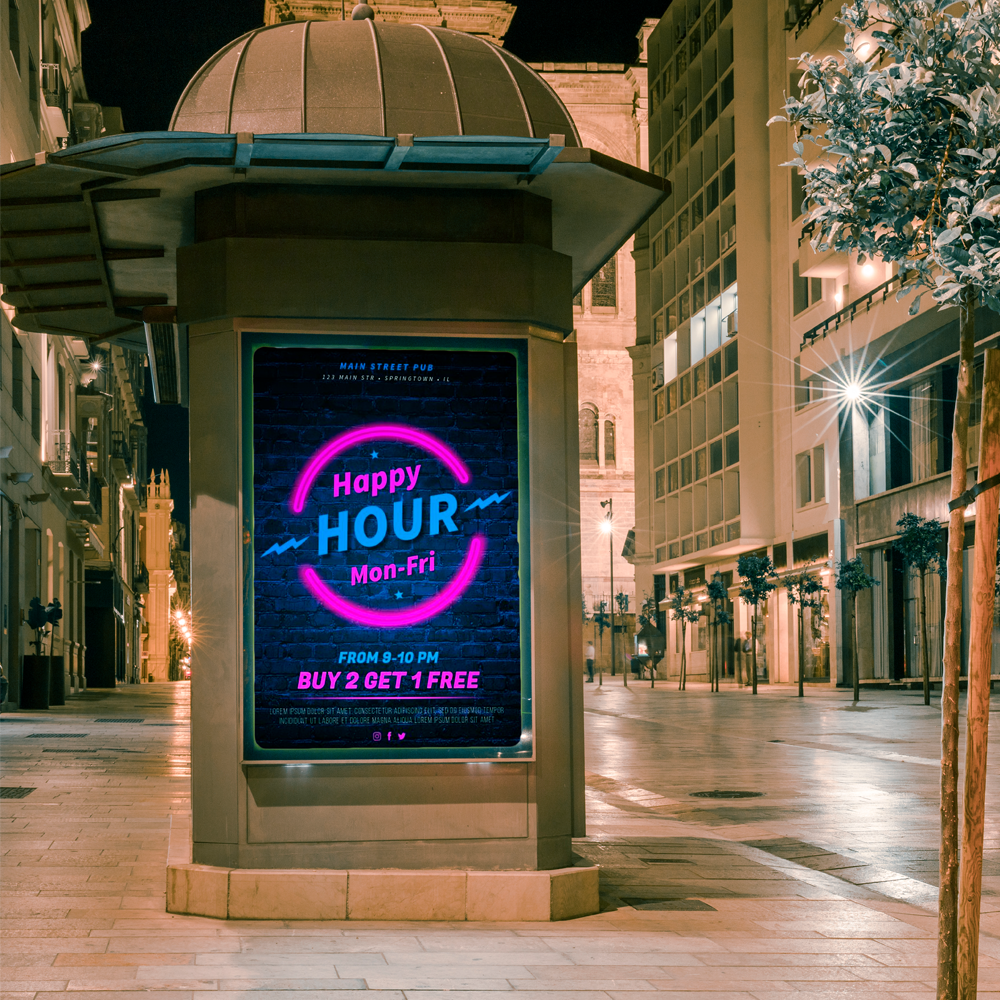

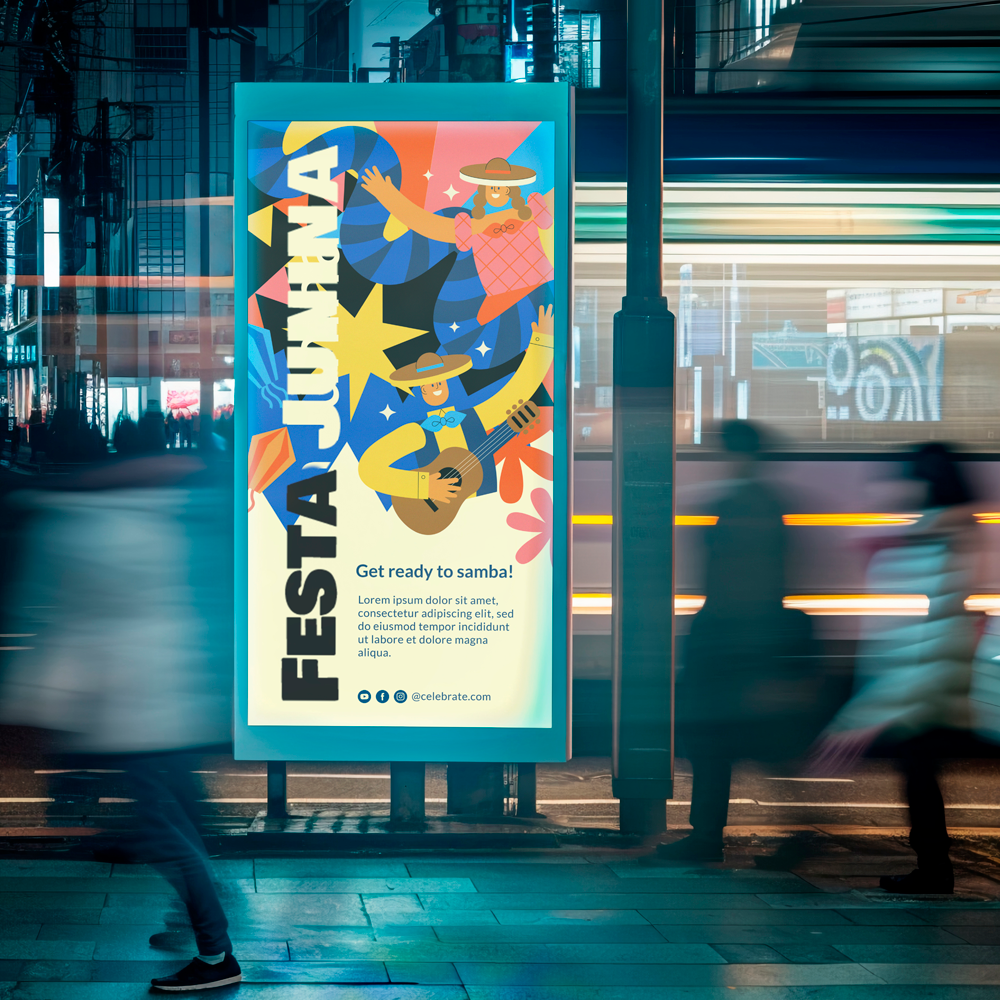

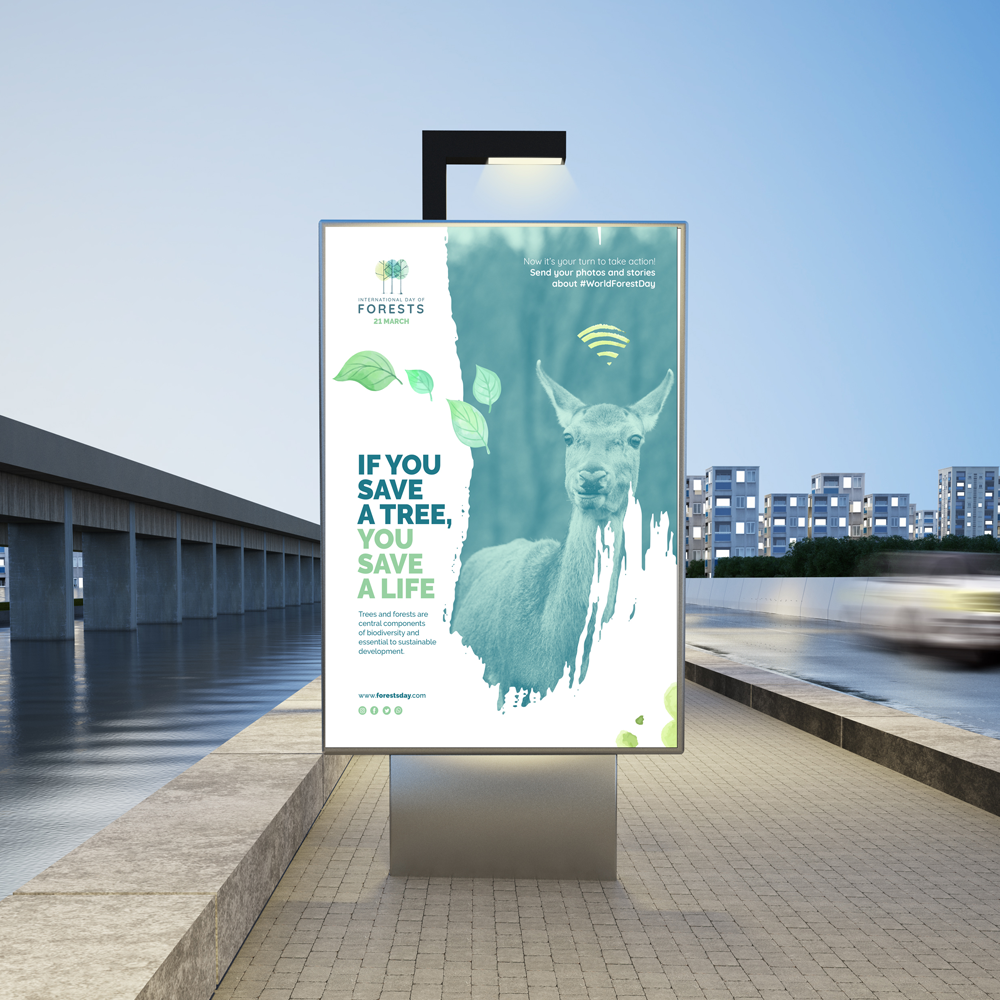

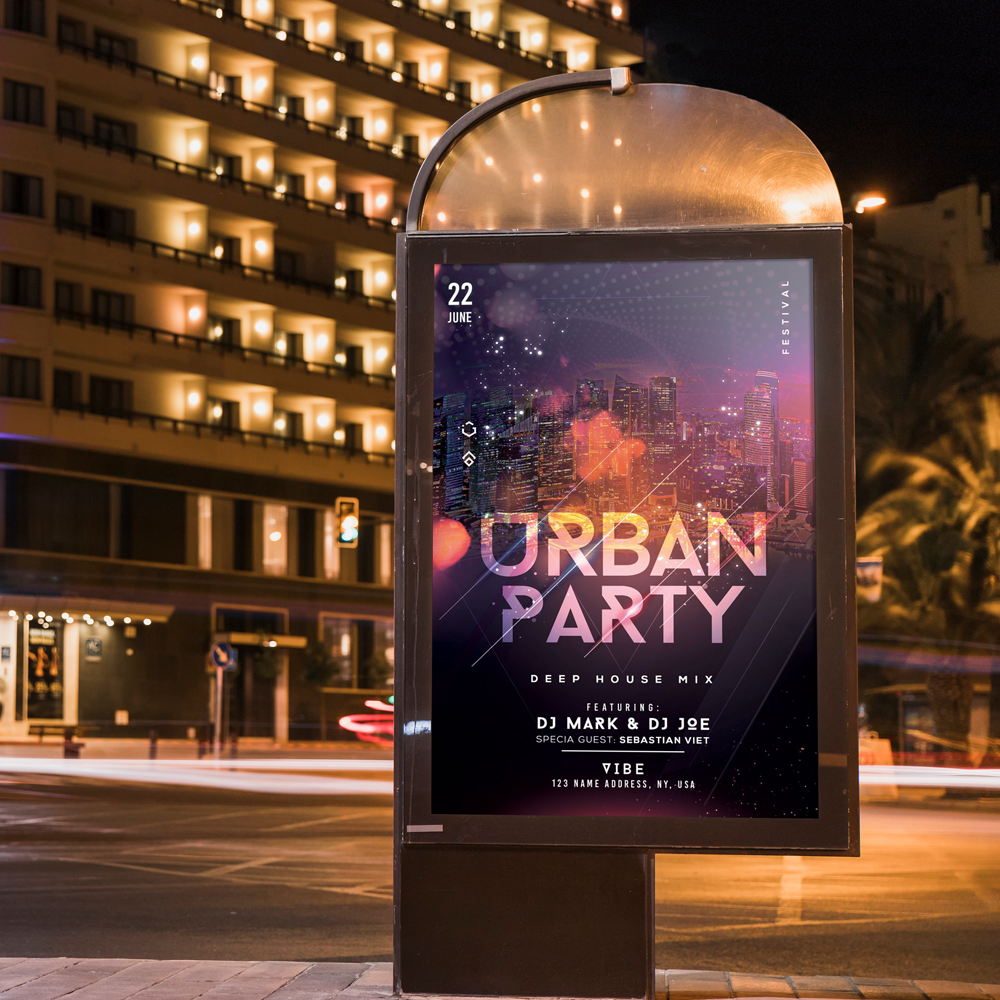

Starview SSIGN Outdoor Digital Signage delivers an all-inclusive engagement solution that is completely equipped for virtually any outdoor environment. Perfect for bus stops and roadside billboards with high brightness and a built-in light sensor, your content will shine day or night. Plus, you can easily manage your signage remotely thanks to an embedded media player. Starview’s Outdoor Digital Signage elevates the outdoor advertising experience with its bold and engaging content delivery, making any business standout from the crowd.
2. BASIC TECHNICAL PARAMETER
- Screen Size: 65 inch
- Active Area (H x V, mm): 1428.4 x 803.5
- Resolution: 3840 x 2160 (16:9)
- Surface Treatment: Haze 1%
- Display Colors: 10 bit, 1.07 billion colors
- Refresh Rate: 60 Hz
- Brightness: 3000 cd/m²
- Contrast Ratio: 1200:1
- Lifetime: 50,000 Hrs (Typ.)
- Viewing Angle: 178°(H) / 178°(V)
- Response Time: 8 ms
- Operation Time: 24/7
- Operation System: Android 7.1
- CPU: Rockchip RK3288, Quad core ARM Cortex A17 @1.6GHz
- GPU: Quad core ARM Mali-T764
- RAM/ROM: DDR3 2/4GB + eMMC 8/32GB; Support TF / USB expansion
- Power Consumption: ≤ 600W
- Power Supply: AC 110 ~ 240V 50/60Hz
- Net Weight: 60 ±2kg
3. INSTALLATION – MAINTENANCE - SERVICES
Free installation in Hanoi, Ho Chi Minh City, Melbourne.
Installation services in other provinces: Within 150km from Hanoi, Ho Chi Minh City: Installation fee of 2 million VND up to a maximum of 5% of the order value. Beyond 300km from Hanoi, Ho Chi Minh City: Installation fee of 3 million VND up to a maximum of 5% of the order value.
Other cities in the region: (Asia, EU, Australia, Anywhere) contact us to receive service quotes...
Additional maintenance and technical support services are available for purchase. In case of equipment malfunction, replacements are provided free of charge, even beyond the warranty period. Contact for further assistance.
Free user guidance and installation support via phone, Video Call, Chat Room, or TeamViewer.
4. WARRANTY POLICY
The product is covered by Starview's official warranty for 24 months in Vietnam/Australia, with service centers in Hanoi. Ho Chi Minh City and Melbourne.
Within the first 28 days after purchase, defective products will be exchanged for new ones, provided they meet specific conditions ( the product must have an original box with full attached of accessories and not have any scratches, do not violate any other warranty policy, and not a consumable device)
From the 29th until the end of the warranty period, Starview commits to fix the problem and return the product within 7 days (excluding Saturdays, Sundays, holidays, Tet and other pre-agreed cases). In case the products that must be sent for warranty overseas, the warranty waiting period will be according to the company's policy.
In case the warranty is not possible or the warranty period is too long (more than 45 days), you can exchange for another device equivalent to the warranty product or a product with higher specifications at an agreed cost..
5. COMMERCIAL CONDITIONS
Price: Listed in Vietnam, excluding 10% VAT, other markets are CIP prices to customer addresses (applicable to all transactions on Starview's e-commerce platforms).Currency: Depending on the country or region, the currencies accepted on the Starview payment system.
Payment Methods: Online payment platforms, bank transfers, credit cards, online payment gateways (VNPAY, PayPal, Master Card, VISA), COD or cash at the company's office.
Deposit Requirement: For orders outside Hanoi/Melbourne and Ho Chi Minh City, a deposit of 10% - 30% of the order value is required for COD.
Specification of goods delivered: Starview products will be delivered to customers with the following documents:
- VAT invoice
- Delivery record, also the equipment warranty certificate
- QR Code instructions for installation, use and technical support
- CO certificate of origin for imported products.
- CQ certificate of quality for imported products or Test report for domestically produced products.
- Customers are provided with an electronic account to access warranty information and technical support directly from Starview's WEB Portal system.
DATASHEETS
STARVIEW SSIGN DIGITAL SIGNAGE SERIES CATALOG
